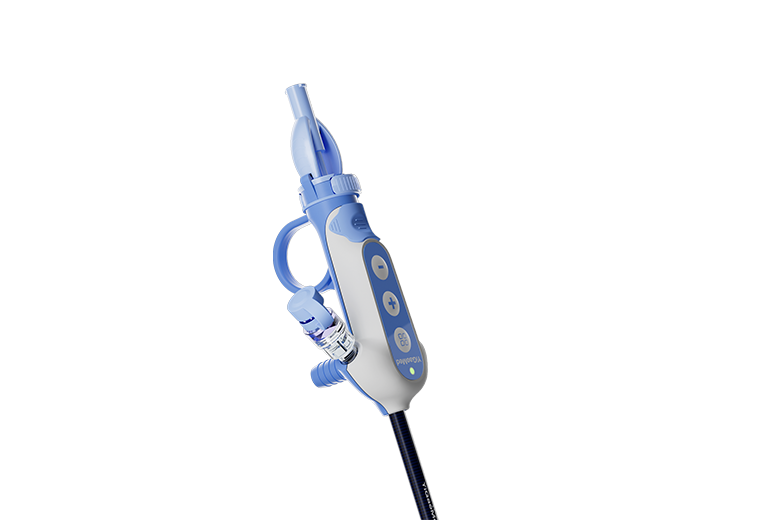

Disposable Intrarenal-Pressure Monitoring Ureteral Access Sheath
This device is intended to establish a channel for other instruments to enter the urinary tract during endoscopic examination and surgery of the urinary system. and is used in conjunction with Intelligent pressure-control System manufactured by our company, to drain and monitor the pressure of the bladder, ureter and kidney.
Product Details
| Catalogue number | Fr | Sheath Outer diameter-D1 | Sheath Inner diameter-D2 | Sheath Length | Dilator Outer Diameter | Length of dilator extending out of the sheath |
| CPS09038(A, B)-EU | 9F | 3.96mm | 3.0mm | 38cm | 3.0mm | 25mm |
| CPS09040(A, B)-EU | 9F | 3.96mm | 3.0mm | 40cm | 3.0mm | 25mm |
| CPS09042(A, B)-EU | 9F | 3.96mm | 3.0mm | 42cm | 3.0mm | 25mm |
| CPS09048(A, B)-EU | 9F | 3.96mm | 3.0mm | 48cm | 3.0mm | 25mm |
| CPS09050(A, B)-EU | 9F | 3.96mm | 3.0mm | 50cm | 3.0mm | 25mm |
| CPS09052(A, B)-EU | 9F | 3.96mm | 3.0mm | 52cm | 3.0mm | 25mm |
| CPS09055(A, B)-EU | 9F | 3.96mm | 3.0mm | 55cm | 3.0mm | 25mm |
| CPS09538(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 38cm | 3.16mm | 25mm |
| CPS09540(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 40cm | 3.16mm | 25mm |
| CPS09542(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 42cm | 3.16mm | 25mm |
| CPS09548(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 48cm | 3.16mm | 25mm |
| CPS09550(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 50cm | 3.16mm | 25mm |
| CPS09552(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 52cm | 3.16mm | 25mm |
| CPS09555(A, B)-EU | 9.5F | 4.13mm | 3.16mm | 55cm | 3.16mm | 25mm |
| CPS10038(A, B)-EU | 10F | 4.3mm | 3.33mm | 38cm | 3.33mm | 25mm |
| CPS10040(A, B)-EU | 10F | 4.3mm | 3.33mm | 40cm | 3.33mm | 25mm |
| CPS10042(A, B)-EU | 10F | 4.3mm | 3.33mm | 42cm | 3.33mm | 25mm |
| CPS10048(A, B)-EU | 10F | 4.3mm | 3.33mm | 48cm | 3.33mm | 25mm |
| CPS10050(A, B)-EU | 10F | 4.3mm | 3.33mm | 50cm | 3.33mm | 25mm |
| CPS10052(A, B)-EU | 10F | 4.3mm | 3.33mm | 52cm | 3.33mm | 25mm |
| CPS10055(A, B)-EU | 10F | 4.3mm | 3.33mm | 55cm | 3.33mm | 25mm |
| CPS10538(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 38cm | 3.50mm | 25mm |
| CPS10540(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 40cm | 3.50mm | 25mm |
| CPS10542(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 42cm | 3.50mm | 25mm |
| CPS10548(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 48cm | 3.50mm | 25mm |
| CPS10550(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 50cm | 3.50mm | 25mm |
| CPS10552(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 52cm | 3.50mm | 25mm |
| CPS10555(A, B)-EU | 10.5F | 4.45mm | 3.50mm | 55cm | 3.50mm | 25mm |
| CPS11038(A, B)-EU | 11F | 4.63mm | 3.66mm | 38cm | 3.66mm | 25mm |
| CPS11040(A, B)-EU | 11F | 4.63mm | 3.66mm | 40cm | 3.66mm | 25mm |
| CPS11042(A, B)-EU | 11F | 4.63mm | 3.66mm | 42cm | 3.66mm | 25mm |
| CPS11048(A, B)-EU | 11F | 4.63mm | 3.66mm | 48cm | 3.66mm | 25mm |
| CPS11050(A, B)-EU | 11F | 4.63mm | 3.66mm | 50cm | 3.66mm | 25mm |
| CPS11052(A, B)-EU | 11F | 4.63mm | 3.66mm | 52cm | 3.66mm | 25mm |
| CPS11055(A, B)-EU | 11F | 4.63mm | 3.66mm | 55cm | 3.66mm | 25mm |
| CPS11538(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 38cm | 3.83mm | 25mm |
| CPS11540(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 40cm | 3.83mm | 25mm |
| CPS11542(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 42cm | 3.83mm | 25mm |
| CPS11548(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 48cm | 3.83mm | 25mm |
| CPS11550(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 50cm | 3.83mm | 25mm |
| CPS11552(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 52cm | 3.83mm | 25mm |
| CPS11555(A, B)-EU | 11.5F | 4.8mm | 3.83mm | 55cm | 3.83mm | 25mm |
| CPS12038(A, B)-EU | 12F | 4.96mm | 4.0mm | 38cm | 4.0mm | 25mm |
| CPS12040(A, B)-EU | 12F | 4.96mm | 4.0mm | 40cm | 4.0mm | 25mm |
| CPS12042(A, B)-EU | 12F | 4.96mm | 4.0mm | 42cm | 4.0mm | 25mm |
| CPS12048(A, B)-EU | 12F | 4.96mm | 4.0mm | 48cm | 4.0mm | 25mm |
| CPS12050(A, B)-EU | 12F | 4.96mm | 4.0mm | 50cm | 4.0mm | 25mm |
| CPS12052(A, B)-EU | 12F | 4.96mm | 4.0mm | 52cm | 4.0mm | 25mm |
| CPS12055(A, B)-EU | 12F | 4.96mm | 4.0mm | 55cm | 4.0mm | 25mm |
| CPS12538(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 38cm | 4.15mm | 25mm |
| CPS12540(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 40cm | 4.15mm | 25mm |
| CPS12542(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 42cm | 4.15mm | 25mm |
| CPS12548(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 48cm | 4.15mm | 25mm |
| CPS12550(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 50cm | 4.15mm | 25mm |
| CPS12552(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 52cm | 4.15mm | 25mm |
| CPS12555(A, B)-EU | 12.5F | 5.13mm | 4.15mm | 55cm | 4.15mm | 25mm |
| CPS13038(A, B)-EU | 13F | 5.3mm | 4.33mm | 38cm | 4.33mm | 25mm |
| CPS13040(A, B)-EU | 13F | 5.3mm | 4.33mm | 40cm | 4.33mm | 25mm |
| CPS13042(A, B)-EU | 13F | 5.3mm | 4.33mm | 42cm | 4.33mm | 25mm |
| CPS13048(A, B)-EU | 13F | 5.3mm | 4.33mm | 48cm | 4.33mm | 25mm |
| CPS13050(A, B)-EU | 13F | 5.3mm | 4.33mm | 50cm | 4.33mm | 25mm |
| CPS13052(A, B)-EU | 13F | 5.3mm | 4.33mm | 52cm | 4.33mm | 25mm |
| CPS13055(A, B)-EU | 13F | 5.3mm | 4.33mm | 55cm | 4.33mm | 25mm |
| CPS14038(A, B)-EU | 14F | 5.63mm | 4.66mm | 38cm | 4.66mm | 25mm |
| CPS14040(A, B)-EU | 14F | 5.63mm | 4.66mm | 40cm | 4.66mm | 25mm |
| CPS14042(A, B)-EU | 14F | 5.63mm | 4.66mm | 42cm | 4.66mm | 25mm |
| CPS14048(A, B)-EU | 14F | 5.63mm | 4.66mm | 48cm | 4.66mm | 25mm |
| CPS14050(A, B)-EU | 14F | 5.63mm | 4.66mm | 50cm | 4.66mm | 25mm |
| CPS14052(A, B)-EU | 14F | 5.63mm | 4.66mm | 52cm | 4.66mm | 25mm |
| CPS14055(A, B)-EU | 14F | 5.63mm | 4.66mm | 55cm | 4.66mm | 25mm |
